Device and method for generating a pulsed anisothermal atmospheric pressure plasma

The invention relates to a device and a method for generating a pulsed (intermittent), cold, atmospheric pressure plasma, preferably a thread, for precise antimicrobial plasma treatment (disinfection, disinfection, sterilization, decontamination) of the smallest areas and cavities, even on living human beings and animal bodies, preferably in the field of medicine, by means of a negative direct current corona discharge with at least one electrode for generating high field strengths, which the gas to be ionized flows through or around in a gas channel, the counter electrode being the electrically conductive structure (surface, cavity) is used. This plasma can generally also be used for cleaning, coating, activating and etching surfaces.

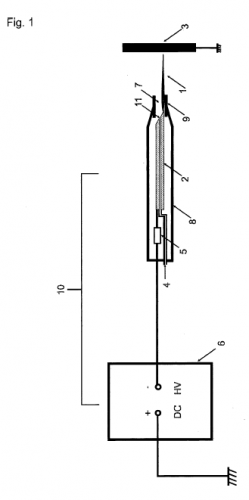

Figure 1 of the Patent Specification

Patent Info
FieldValue
Patent Family
Patent OfficePatent NumberFiledDate of PatentLegal Status
DEDE102009047220A127.11.2009­in force
WOWO2011063798A227.11.2010-------------expired
EPEP2505042A227.11.2010-------------expired
USUS2013026137A110.09.2012-------------expired
Applicant(s)
Inventors
Device Info
FieldValue
Plasma Source Name
Plasma Source Application
Plasma Source Specification
