Device for generating a cold atmospheric pressure plasma

The invention relates to a device for generating a cold atmospheric pressure plasma for treating human and/or animal surfaces, comprising a flat flexible multilayer system with a face which faces the surface to be treated and a face which faces away from the surface to be treated. The multilayer system comprises the following layers: namely a first electrode layer on the multilayer system face facing away from the surface to be treated, a second electrode layer on the multilayer system face facing the surface to be treated, said electrode layer having a plurality of recesses or being designed in a grid-like or meandering manner, a dielectricum layer which is arranged between the first electrode layer and the second electrode layer, and a spacer layer which is arranged adjacently to the second electrode layer on the multilayer system face facing the surface to be treated. The invention further relates to a cable, a generator unit for providing a high voltage, and a system.

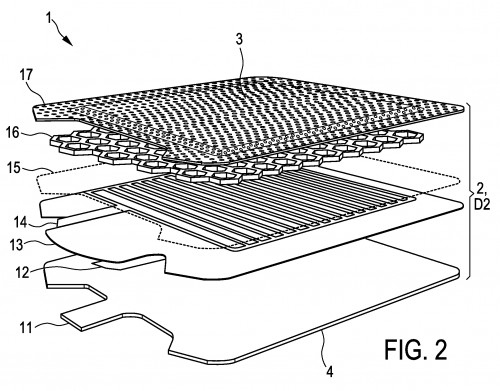

Figure 2 of the Patent Specification

Patent Info
FieldValue
Patent Family
Patent OfficePatent NumberFiledDate of PatentLegal Status
DEDE102014220488A109.10.2014expired (granted in EP)
WOWO2016055654A109.10.2015--------------expired
EPEP3205186B109.10.201508.12.2021granted (in force in: AT, BE, CH, CZ, DE, DK, EE, ES, FI, FR, GB, IE, IT, LT, LU, LV, MC, MT, NL, NO, PL, PT, SE, SI, SK, TR)
USUS11,478,292B209.10.201525.10.2022granted
CA2,963,45709.10.201525.10.2022granted
BRBR112017007257-2 B109.10.201501.11.2022granted
AUAU2015329934B209.10.201503.06.2021granted
JPJP6718458B209.10.201516.06.2020granted
CNCN114390766 A09.10.2015in force
KRKR102500459 B109.10.201513.02.2023granted
EA00EA038650B109.10.201529.09.2021granted (in force in: RU)
MX38569909.10.201530.08.2021granted
SG11201702784S09.10.201514.02.2020granted
SA00SA8998B109.10.201503.12.2021granted
AEP6000399/201709.10.2015in force
HK1242906B09.10.201522.04.2022granted
ILIL251677A09.10.201501.09.2021granted
IN0049332709.10.201502.01.2024granted
ZA2017/0242409.10.201528.03.2018granted
MAMA40892B109.10.201528.02.2022granted
EA01EA040243 B109.10.201511.05.2022granted (in force in: RU)
IN0120231808084509.10.2015in force
