The Leibniz Institute for Plasma Science and Technology (INP) is the largest non-university institute in the field of low temperature plasmas, their basics and technical applications in Europe. The institute carries out research and development from idea to prototype. The topics focus on the needs of the market. At present, plasmas for materials and energy as well as for environment and health are the focus of interest.

Dörte Valenthin
Patent Officer

Tel.: +49(0) 3834 554 3909
Fax: +49(0) 3834 554 301

doerte [punkt] valenthinatinp-greifswald [punkt] de

Device, system and method for treating an object with plasma

The present invention relates to a device as well as a system and a method for treating an object, in particular one or more free-form objects, with plasma. The object to be treated can in particular be a raw food such as an egg, fruit or vegetable, or packaging as well, or respectively a cap, etc. Treating the object with plasma preferably serves the object of decontaminating and sterilizing the surface of the object.
The device for treating an object with plasma comprises a jacket apparatus (10) which forms, or can form, a substantially gas-tight holding chamber (15) in which an object (1) to be treated can be accommodated. The device comprises a first electrode (20) and a second electrode (21), wherein the two electrodes (20, 21) are arranged with reference to the jacket apparatus (10) such that a plasma (2) can be generated in the holding chamber (15) of the jacket apparatus (10). A wall (13) of the jacket apparatus (10) forming the holding chamber (15) of the jacket apparatus (10) has a modulus of elas-ticity of Ew<10 kN/mm2, at least in sections. The device comprises a housing (30), by means of which a housing interior (33) is or can be formed, wherein the jacket apparatus (10) is arranged within the interior of the housing (33).

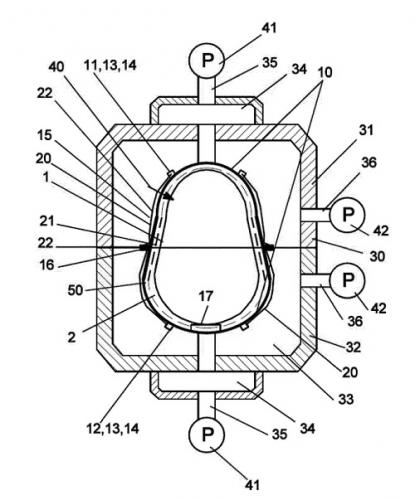

Figure 3 of the Patent Specification

Patent Info
FieldValue
Patent Family
Patent OfficePatent NumberFiledDate of PatentLegal Status
DEDE102015119369A110.11.2015------------expired
EPEP3168858B109.11.201616.06.2021expired
USUS10,283,323B210.11.201607.05.2019expired
Applicant(s)
Inventors
Device Info
FieldValue
Plasma Source Name
Plasma Source Application
