The Leibniz Institute for Plasma Science and Technology (INP) is the largest non-university institute in the field of low temperature plasmas, their basics and technical applications in Europe. The institute carries out research and development from idea to prototype. The topics focus on the needs of the market. At present, plasmas for materials and energy as well as for environment and health are the focus of interest.

Dörte Valenthin
Patent Officer

Tel.: +49(0) 3834 554 3909
Fax: +49(0) 3834 554 301

doerte [punkt] valenthinatinp-greifswald [punkt] de

Hand disinfection device having a plasma and aerosol generator

The invention relates to a disinfection device (1) for plasma disinfection of surfaces comprising a plasma generator (2) for generating a disinfecting plasma gas stream (PA), and comprising an at least partially closed disinfection area (5) that is in communicating connection with the plasma generator (2), which is configured for receiving the surface (6) to be disinfected. The disinfection device (1) has an aerosol generator (9) for generating an aqueous aerosol stream (A) containing particles. The aerosol generator (9) is in communicating connection with the plasma generator (2) in order to guide the plasma gas stream (PA) mixed with the aerosol stream (A) in the disinfection area (5) onto the surface (6) to be disinfected.

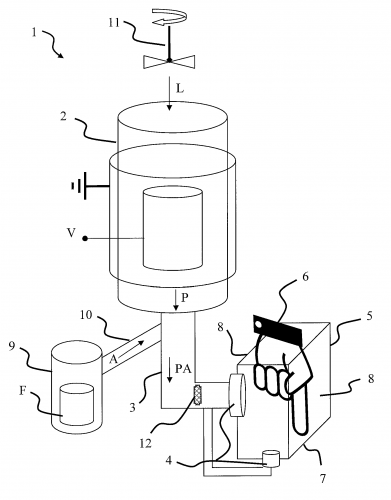

Figure 1 of the Patent Specification

Patent Info
FieldValue
Patent Family
Patent OfficePatent NumberFiledDate of PatentLegal Status
DEDE102013109777B406.09.201321.05.2015expired
WOWO2015/032888A105.09.2014---------expired
DEDE202013012156U106.09.201306.08.2015expired
EPEP3041518B105.09.201422.11.2017granted (active in Austria, Switzerland, Germany, Czech Republic, Great Britain, Denmark, France, Netherlands, Turkey, Sweden)
USUS10,124,080B204.03.201613.11.2018granted
CACA2923337C04.03.201612.12.2017granted
RURU2674764C204.03.201613.12.2018granted
Applicant(s)
Wilfried Krömker
Inventors
Device Info
FieldValue
Plasma Source Application
