Method and system for treating fluids by producing corona discharges in a fluid volume

The invention relates to a method for treating fluids (5) by producing corona discharges (12) in the fluid volume (6). According to said method, high-voltage pulses (8) are applied to an electrode arrangement (2) present in the fluid volume (6). Pulse rise times of the high-voltage pulses (8) are in the range of 1 to 40 nanoseconds and pulse duration of the high-voltage pulses (8) is in the range of 50 to 400 nanoseconds.

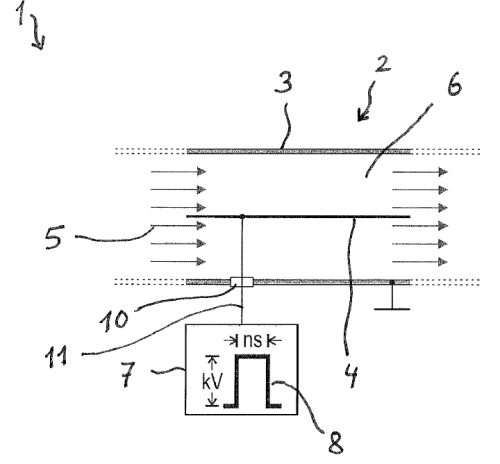

Figure 1 of the Patent Specification
Sketch of a device for fluid treatment with an electrode arrangement and a high-voltage unit

Patent Info
FieldValue
Patent Family
Patent OfficePatent NumberFiledDate of PatentLegal Status
DEDE10201310591707.06.2013----------------expired
WOWO2014/195519A110.06.2014----------------expired
EPEP3003988B110.06.201404.12.2019granted (active in Germany, Austria, Belgium, Switzerland, Sweden, Netherlands, France, Denmark, Finland, Luxembourg)
CNCN105307983B04.12.201507.11.2017expired
Applicant(s)
Inventors
Device Info
FieldValue
Plasma Source Application
