The Leibniz Institute for Plasma Science and Technology (INP) is the largest non-university institute in the field of low temperature plasmas, their basics and technical applications in Europe. The institute carries out research and development from idea to prototype. The topics focus on the needs of the market. At present, plasmas for materials and energy as well as for environment and health are the focus of interest.

Dörte Valenthin
Patent Officer

Tel.: +49(0) 3834 554 3909
Fax: +49(0) 3834 554 301

doerte [punkt] valenthinatinp-greifswald [punkt] de

Method for producing gas diffusion electrodes for a fuel cell, gas diffusion electrode, and fuel cell

The invention relates to a method for producing gas diffusion electrodes (GDEs) for fuel cells, which gas diffusion electrodes comprise at least one electrically conductive carrier (4) and at least one catalytic layer (3) containing noble metal on the carrier (4). Particles containing noble metal and non-metal conductive particles are alternately applied by physical gas-phase deposition on the electrically conductive carrier (4) in order to produce the catalytic layer (3).

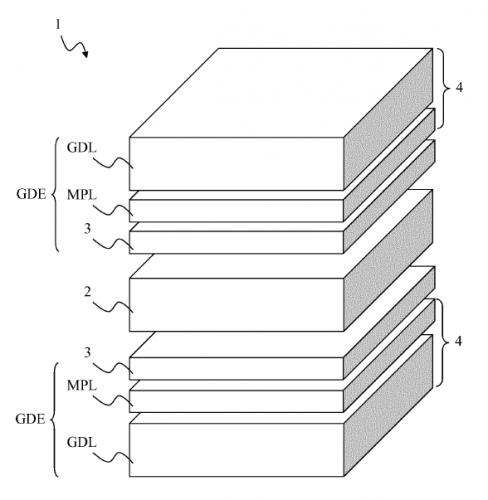

Figure 1 of the Patent Specification

Patent Info
FieldValue
Patent Family
Patent OfficePatent NumberFiledDate of PatentLegal Status
DEDE102014109071A127.06.2014-----------expired
WOWO2015197812A126.06.2015-----------expired
EPEP3161889B126.06.201521.08.2019granted (active in Switzerland, Germany, Great Britain, France, Denmark, Austria, Netherlands)
Applicant(s)
Inventors
