The Leibniz Institute for Plasma Science and Technology (INP) is the largest non-university institute in the field of low temperature plasmas, their basics and technical applications in Europe. The institute carries out research and development from idea to prototype. The topics focus on the needs of the market. At present, plasmas for materials and energy as well as for environment and health are the focus of interest.

Dörte Valenthin
Patent Officer

Tel.: +49(0) 3834 554 3909
Fax: +49(0) 3834 554 301

doerte [punkt] valenthinatinp-greifswald [punkt] de

Plasma-generated gas sterilization method

The invention relates to a method and to a device for quickly decontaminating and sterilizing preferably thermolabile goods using a plasma gas that is preferably generated from air as a process gas, with the subsequent humidification of said plasma gas with water. The method comprises the following steps: generating a plasma from air as the process gas, which forms reactive nitrogen and oxygen species; oxidizing NO to form NO2 at temperatures below 400°C so that a plasma-activated gas mixture forms having an NO2 content of at least 0.3%; bringing said plasma-activated gas mixture in contact with water in one or more of the states of aggregation thereof; bringing the latter gas mixture in contact with the objects to be decontaminated or sterilized.

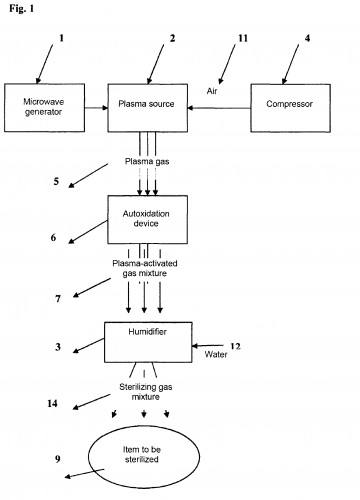

Figure 1 of the Patent Specification

Patent Info
FieldValue
Patent Family
Patent OfficePatent NumberFiledDate of PatentLegal Status
DE102010019863.307.05.2010----------------expired
WOWO2011/138463A109.05.2011----------------expired
JPJP2013537433A30.11.2012----------------expired
EPEP2566524B109.05.201117.02.2021granted (active in Germany, Great Britain, Ireland, France)
USUS9,623,132B220.02.201318.04.2017granted
USUS10,039,849B214.04.201707.08.2018granted
Applicant(s)
Inventors
Device Info
FieldValue
Plasma Source Application
Plasma Source Specification
