Plasma treatment device

A plasma treatment device having an electrode arrangement (3) for generating a plasma in a supplied gas stream. The electrode arrangement has at least one movably mounted electrode. The plasma is preferably a cold atmospheric pressure plasma and can be generated so as to vary in location by means of movement of the at least one electrode.

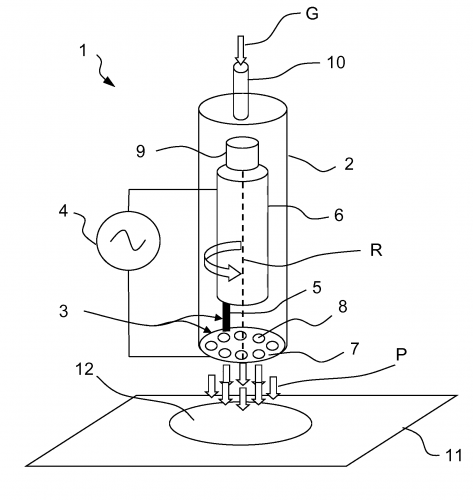

Figure 1 of the Patent Specification

Patent Info
FieldValue
Patent Family
Patent OfficePatent NumberFiledDate of PatentLegal Status
DEDE102015101315B329.01.2015­21/4/2016abandoned
EPEP3051927B127.01.201628.02.2018abandoned
USUS9,767,995B228.01.201619.09.2017expired
Applicant(s)
Inventors
Device Info
FieldValue
Plasma Source Name
Plasma Source Application
Plasma Source Specification
